Explosion-Proof LED Mining Headlamp - Certified Safe for Coal Mines, Tunnels & Emergency Rescue | Long-Runtime Rechargeable Miner's Light

Professional coal mining lights with lithium battery. IP68 waterproof, anti-impact LED miners headlamp for tunnels/pipelines. 10,000-25,000lx brightness, 15-35hrs runtime.

Key Parameter

Specification

Light Source

USA CREE LED (120 lm/W efficiency)

Battery

LiMn₂O₄ (Lithium Manganese Oxide) 4V system

Runtime

14-35h (model dependent, see table below)

Impact Resistance

1.5m drop protection

Weight

300-500g (with adjustable headband)

Control

Rotary switch (Main/Aux/Off)

  • Overview
  • Recommended Products
  • Inquiry

Product general information

Model

Illumination

Runtime

Battery

Special Feature

KL6LM

12,000 lux

26h

7200mAh

Standard mining

M9070

25,000 lux

19h

9600mAh

High-intensity

KL3.2LM

10,000 lux

14h

3200mAh

Chile bestseller

KL5LM-C

20,000 lux

14h

5200mAh

Compact design

Description:

Model: KL6LM Chalimex M9070 KL3.2LM KL5LM-C
Voltage: 4V 4V 4V 4V
Current: 500Ma 700Ma 400Ma 600Ma
Illumination: 15000lx 25000lx 10000lx 20000lx
Light Time: 18hours 19hours 14hours 14hours
Capacity: 7800mah 9600mah 3200mah 5200mah
Charging Time: <10hours <10hours <10hours <10hours

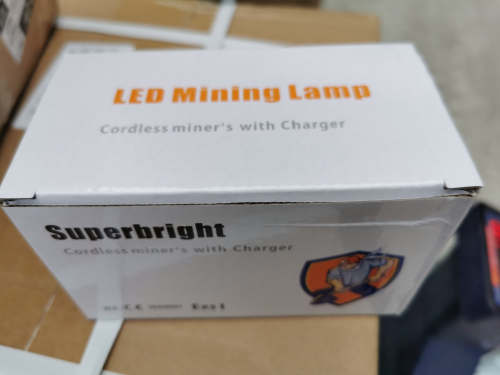

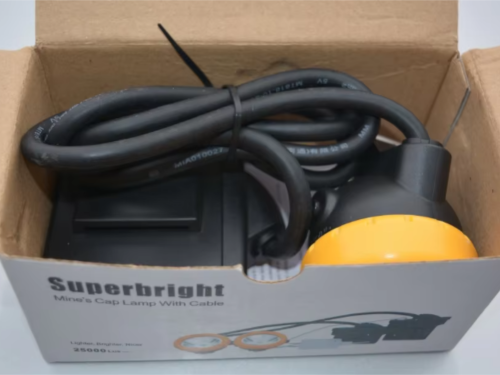

Neutral Packing 01.jpg.png Neutral Packing 02.jpg.png Neutral Packing KL5M 03.png.png

Competitive Advantage:

1. Explosion-Proof Structure​​

  • ​​Ballistic PC-ABS shell​​ + ​​Epoxy-encapsulated circuitry​​ isolates sparks in methane-rich environments.
  • Certified for ​​Group I Hazardous Locations​​ (ATEX/IECEx equivalent to GB7957).

​​2. Military-Grade Battery Safety​​

  • ​​Lithium Manganese Oxide (LiMn₂O₄) battery​​ withstands -20°C to 60°C without thermal runaway.
  • ​​Triple-protection circuit​​ prevents over-charge/discharge/short-circuit during 2000+ cycles.

​​3. Uncompromised Optical Performance​​

  • ​​USA CREE LEDs​​ deliver 25,000 lux with ​​<5% lumen decay​​ (vs. 50% in incandescent lamps).
  • ​​TIR optics​​ create shadow-free illumination 20m in pitch-black tunnels.

​​4. Battlefield-Proven Durability​​

  • ​​IP68 rating​​ withstands high-pressure water jets and coal dust storms.
  • ​​1.5m drop resistance​​ (MIL-STD-810G tested) against rock falls.

​​5. Intelligent Safety Alerts​​

  • ​​Red LED warning​​ at 10% battery, triggering ​​emergency power-savingmode​​ (30% extra runtime).

​​6. Miner-Centric Ergonomics​​

  • ​​125g ultra-light​​ head unit (vs. 400g industry average).
  • ​​One-hand rotary switch​​ works with thick gloves.

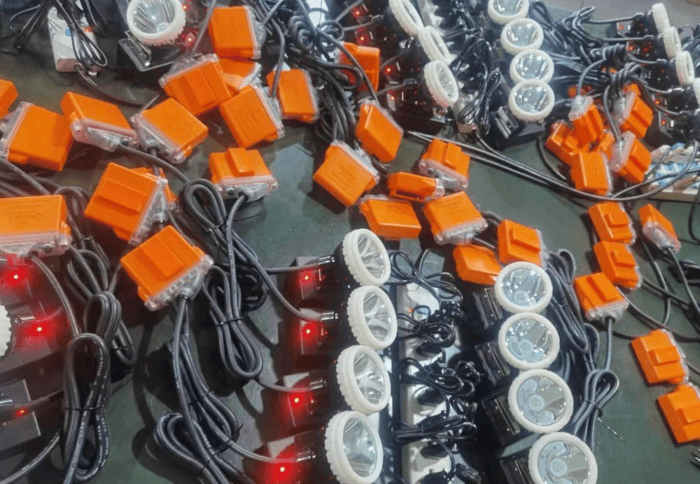

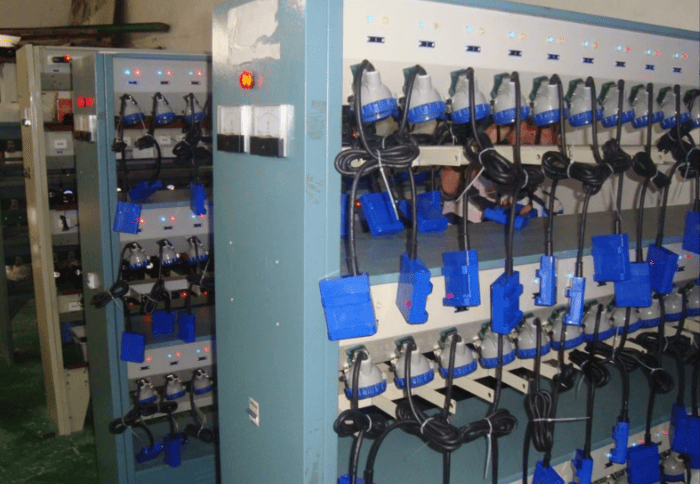

D M9038AL fb sara wang 02.jpg.png D RD500 福州Golden Moral 中国制造 (2).png.png

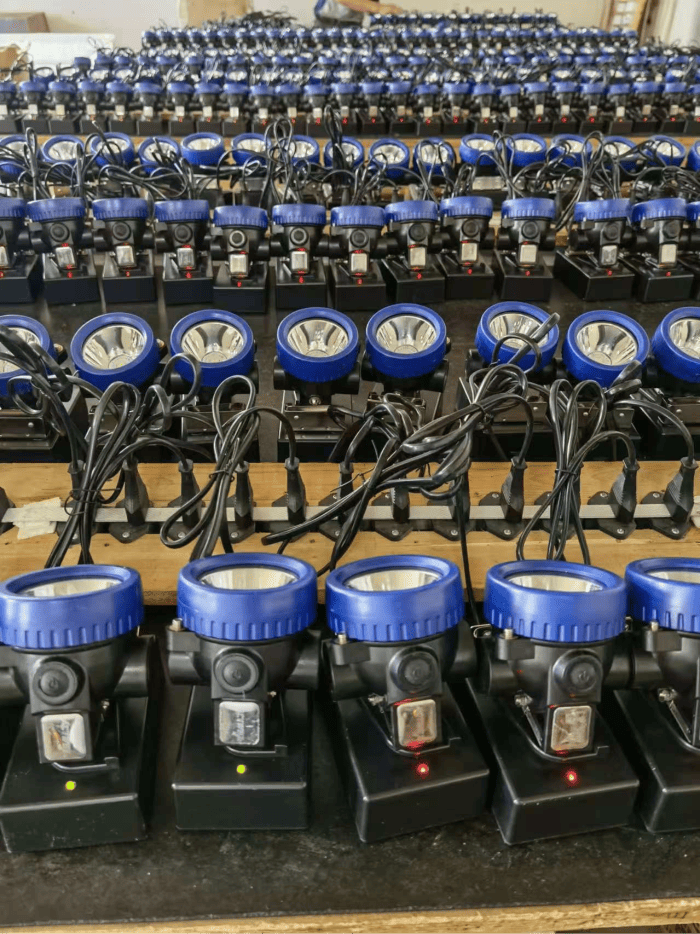

微信图片_20240816115628.jpg.png 微信图片_20240816115637.jpg.png

Applications:

  • Coal Mining​​: Gas-prone tunnels, haulage roadways, mining faces
  • ​​Metal/Non-Metal Mines​​: Underground drilling, ore transportation
  • ​​Tunnel Construction​​: Railway/hydraulic/subway tunnels
  • ​​Utility Corridors​​: Power/gas/water pipeline maintenance
  • ​​Emergency Rescue​​: Mine disasters, earthquakes, firefighting
  • ​​Industrial Zones​​: Underground warehouses, parking garages

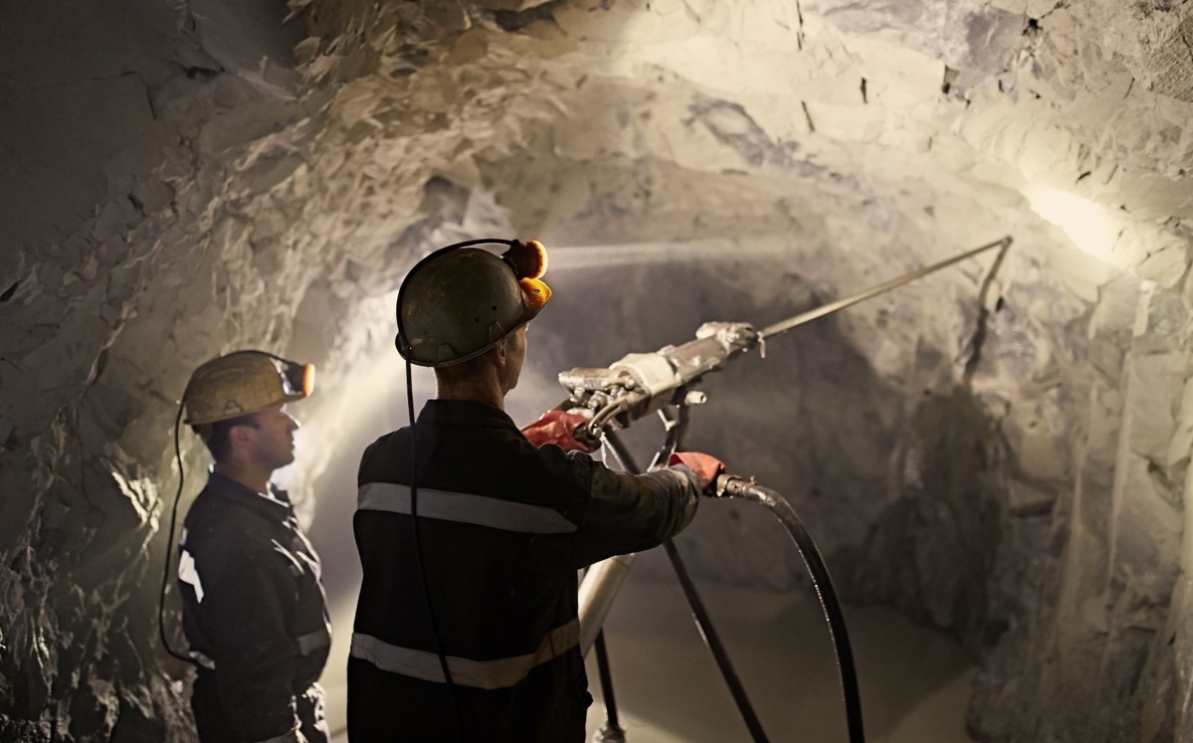

LED hat lamp for coal mining.png
