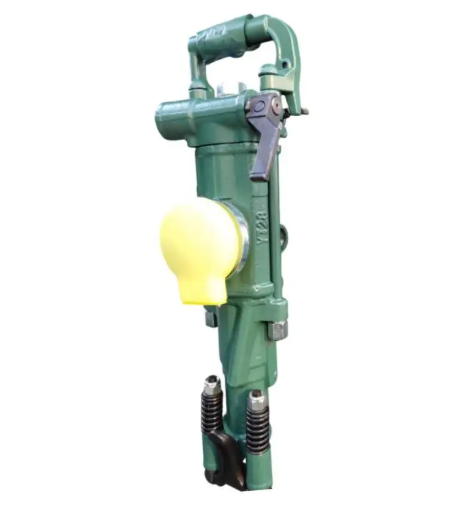

In the world of underground mining and tunnel boring projects, air leg rock drills have become pretty much indispensable. These machines mix compressed air power with a sturdy mechanical leg system that makes drilling possible even in those awkward spots where regular hand held equipment just won't cut it. What really sets them apart is how the air leg provides extra stability during operation. This means miners can maintain better control over their drilling direction, which translates to consistently straighter and deeper holes throughout the workday. Most experienced operators will tell you that this kind of reliability saves time and reduces wasted effort when working through tough rock formations.
Many smaller and mid-sized mining operations rely on air leg rock drills for their day-to-day work, particularly when it comes to extracting valuable ores or developing new tunnel faces. These tools are built to handle tough rock formations, which is why miners often turn to them in places like gold deposits, copper rich areas, and even deep coal seams where traditional methods fall short. When we look at civil construction projects, these same drills play important roles too. They help with everything from boring through mountains for tunnels to preparing roads and blasting foundations for buildings. What really sets them apart though is how light they are compared to other heavy machinery, plus the fact that workers can easily move them around tight spaces underground where bigger equipment simply won't fit.
The amount of air pressure makes all the difference when it comes to how fast we can drill and how well our tools actually perform. For most standard rock drills mounted on air legs, they work best when the pressure stays somewhere between 0.4 and 0.63 MPa. Getting the right match between the drill and available air pressure helps maximize the punch power while keeping wear down on those expensive internal parts. When there isn't enough pressure pushing through, the bit just doesn't get deep enough into the rock quickly enough. But crank up the pressure too much and things start breaking down faster from heat buildup or parts simply giving out under stress. That's why matching what the air supply system can deliver with what the compressor actually produces needs to line up pretty closely with what the manufacturer specifies for their particular model of drill.
The size and depth of the hole really matters when picking out the right drill model for the job. Most folks find that medium duty air leg drills work just fine for regular tasks where they need to drill holes ranging from around 32mm up to about 42mm wide. But if someone needs to go deeper or tackle bigger diameter holes, then going with heavy duty models makes sense since these come with stronger torque capabilities and extended legs that can handle tougher conditions. Getting the piston stroke length and overall reach of the drill aligned properly with what actually needs to be drilled isn't just about making things easier it also keeps workers safer while getting better results overall.
Rock hardness varies significantly across different geological formations, and this has a real effect on how efficiently drilling operations proceed. For softer rocks like sandstone and medium hard materials such as limestone, regular carbide tipped bits generally work fine for most applications. When dealing with harder formations including granite and quartzite though, operators typically require stronger equipment. High frequency impact drills combined with tougher bits become necessary in these situations. Getting good energy transfer between the piston mechanism and actual drill bit is crucial. Without proper efficiency here, there's a much higher risk of damaging expensive tools or ending up with shallow holes that don't meet depth requirements.
Getting the air leg set correctly for the surface angle and drilling plane is absolutely critical for good results. Drill operators need to check that the force from the air leg actually matches what's needed for proper penetration into the material being worked on. If things aren't aligned right, drills tend to bounce back unexpectedly or just plain miss their mark entirely. The newer equipment models now feature some pretty useful upgrades like automatic leg resets and those handy quick exhaust valves which really cut down on setup time while making operations safer overall. These improvements make a big difference in day to day field work conditions.
Keeping those air leg rock drills properly lubricated makes all the difference when it comes to how long they'll last. A lot of modern models come equipped with inline oilers that keep things running smoothly by delivering oil where it needs to go. And let's not forget about those water injection systems either. They do triple duty cutting down on dust in the air, protecting workers from breathing in harmful particles, and actually making the tools themselves last longer too. When both these systems are working as they should, mechanics spend less time fixing problems and can stretch out those expensive service visits quite a bit further between them.
Operating an air-leg rock drill demands training to handle recoil, noise, and confined space limitations. Users should be equipped with ear protection, gloves, and vibration-damping clothing. Proper stance and anchoring techniques are essential to prevent slippage and maintain control, especially during vertical or overhead drilling.
Modern air-leg drills are being designed with ergonomic grips, noise-reduction chambers, and anti-vibration handles. These features not only enhance operator comfort but also reduce fatigue during long shifts. Less vibration also translates to reduced risk of operator injury and improves drilling accuracy over time.
Manufacturers now prioritize modular construction in air-leg drill designs. This allows for quicker replacement of worn components like pistons, valves, and air legs. Easily accessible service ports and interchangeable parts lower the cost of maintenance and reduce equipment downtime.
While traditional air-leg rock drills remain largely manual, newer models are beginning to integrate with smart monitoring systems. Sensors can track usage hours, air pressure levels, and maintenance intervals. In larger operations, this data can feed into predictive maintenance platforms, helping operators schedule service before a breakdown occurs.
As the mining industry faces growing environmental scrutiny, the push for energy-efficient pneumatic systems grows stronger. Future air-leg rock drills are expected to consume less compressed air per stroke, reducing overall energy use without sacrificing performance. Advanced sealing technologies and lightweight materials are also contributing to greener designs.
Beyond mining, air-leg rock drills are becoming increasingly relevant in water tunnel projects, hydropower developments, and subway construction. Their compact size and adaptability make them suitable for specialized drilling jobs where larger machinery cannot reach.
Human-centered design will remain a focal point, with innovations targeting better vibration absorption, noise insulation, and user feedback systems. Training programs will also evolve to address ergonomic best practices and digital tool integration, ensuring safe and efficient usage.
With proper maintenance, an air-leg rock drill can last between three to five years in continuous operation. Factors such as regular lubrication, correct pressure use, and scheduled part replacement significantly extend its lifespan.
Yes, though primarily designed for vertical and inclined surfaces, air-leg rock drills can be adapted for horizontal drilling by adjusting the leg support and using appropriate drilling stands or fixtures.
Ensure that the air compressor delivers stable pressure, the lubrication system is functioning, and the drill bits are regularly inspected for wear. Operator technique also plays a vital role in maintaining penetration speed and accuracy.
Most leading manufacturers supply spare parts such as pistons, valves, and drill legs. Choosing a widely-used model ensures better availability of parts and after-sales support.
